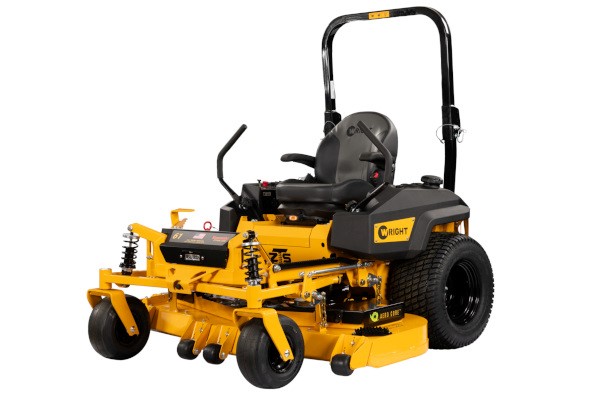

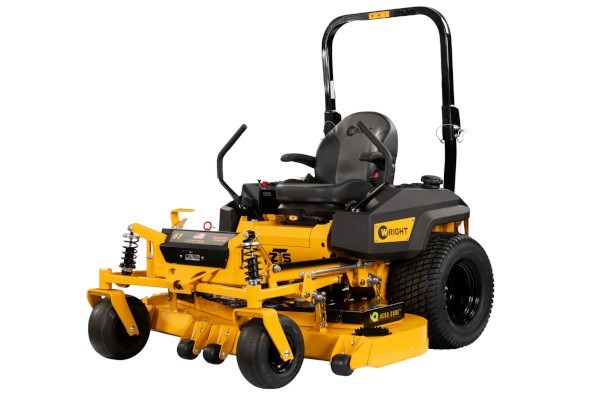

Wright ZTS 52 FT730V

New Products / Wright / Zero-Turn / ZTS Series / ZTS 52 FT730V

Double tap to zoom



Features

  • Integrated Parking Brake
    Activated through the hand controls. It’s simple, and intuitive so you can get to work faster.
  • Hydro-Gear® ZT3400 Transaxles
    The short axle design reduces bearing load for longer life. Sealed venting system prevents leaks and simplifies maintenance.
  • Premium Suspension Seat
    Fully adjustable with additional spring isolators underneath for even more comfort.
  • 52” & 61” Aero Core® Deck
    Handle a wide range of cutting conditions delivering a professional cut quality.
  • Light Up Your Cut
    Standard front headlight with optional dual corner-pod lights.
  • 24” Rear Drive Tires
    Oversized rear tires provide improved traction and lower ground pressure for a smoother ride.
  • Large Capacity Fuel Tank
    7.5-gal capacity positioned to improve line of sight to edge of cutter deck.
  • Integrated Front and Rear Tie-Down
    Durable tie-downs for secure and easy transport between jobs.
  • Simplified Electrical System
    Single relay, single fuse design keeps electrical diagnosis easy.
  • Durable Height-of-Cut Selector
    Vertical oriented design is easy to reach. 1.5 to 5 inch range.
  • Oversized Deck Pulleys
    Larger radius pulleys reduce belt flex for improved belt life.
  • Underbody Protection
    Engine and hydraulic component protective plates keep critical components safe.
  • Rugged Deck Belt Setup
    Compression spring and dual belt design reduces wear and maximizes belt life.
  • Operator Comforts
    Ease to reach operator station with 12volt accessory for charging devices and cell phone seat pocket.
  • Sealed Caster Bearings
    ZERO grease zerks on the entire machine = more time mowing.

Specifications

MowerZTS 52 FT730V
GENERAL
SKUWZTS52SFT7301B
CategoryMid-Mount
FamilyZTS
ClassHeavy-duty
GenerationGen 1
CONTROL PANEL
Operator Control TypeOver the lap controls
Hour MeterDigital
ENGINE
VendorKawasaki
ModelFT730V
Start TypeElectric
Horsepower24 HP
PRODUCTIVITY
Forward Speed10.0 MPH
Reverse Speed4.5 MPH
Fuel Capacity7.5 GAL
Max Acres Per Hour5.25
DRIVE SYSTEM
TypeHydro
MotorNA
PumpNA
TransaxleHydro-Gear ZT3400
TransmissionNA
DECK
Deck Size52 IN
Deck TypeFloating-side discharge
ConfigurationAero Core
Lift SystemQuick-Cut
Blade Quantity3
Blade Length18 IN
Deck Min. Cut Height1.5 IN
Deck Max. Cut Height5 IN
Steel Gauge7 Gauge
Spindle TypeDuctile Iron
DIMENSIONS & WEIGHT
Weight1160 LB
Length84.00 IN
Width w/ Deflector Down64.50 IN
Width w/ Deflector Up52.00 IN
CASTER WHEELS
Rim Diameter6.00 IN
Tire Diameter13.00 IN
Tire Width5.00 IN
REAR WHEELS
Rim Diameter12.00 IN
Tire Diameter24.00 IN
Tire Width9.50 IN
