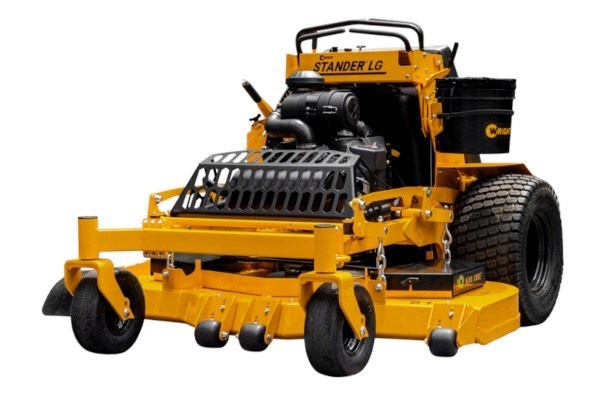

Wright 61 FX820

New Products / Wright / Stand-On Mowers / Stander LG / 61 FX820

Double tap to zoom



Features

  • Ease of Maintenance
    "C" mounting makes it easier to swap out transmissions, much like the ZXL rider.
  • Large Drive Tires
    Large 24" rear tires provide maximum control and comfort with minimal turf impact.
  • Aero-Core™ Deck
    Engineered for precision, the flat-back Aero-Core™ deck offers superior cut quality, agile handling, and quick-access maintenance.
  • Large Frame
    Heavy duty large section frame and super-sized caster pivots offer ultimate ruggedness over the mower's life.
  • Large Capacity Fuel Tank
    Oversized 11-gallon central mounted fuel tank improves side visibility while lowering the center of gravity. Mow longer between fill-ups.
  • Comfortable Platform
    A new wider and tapered operator platform with an integrated damper for a smooth all day ride.
  • Commercial-grade Engine Options
    Choose between a 34.5 HP EFI or 27 HP carbureted engine, both built for reliable, high-performance mowing.
  • Bolstered Operator Pad
    Heavy bolstering on the extra-wide pad with thick cushion allows for all day comfort.
  • Simple Built Electrical System
    Simple and low tech "one relay" electrical system lowers chances for things to go wrong and makes servicing the mower easier.
  • Front Guard
    A heavy-duty front guard shields the engine and muffler, providing enhanced protection against impact and debris.
  • Oversized Caster Design
    The large caster yolk with sealed caster bearings offer improved impact protection often seen in heavy commercial use.
  • Maximum Visibility
    Intuitive 360 degree viewing angles without sacrificing performance.

Specifications

MODELStander LG 61 FX820
GENERAL
SKUWSLG61SFX8201B
CategoryStand-On
FamilyStander LG
ClassHeavy-duty
GenerationGen 1
CONTROL PANEL
Operator Control TypeQuad Lever Ball Bearing
Hour MeterDigital
ENGINE
VendorKawasaki
ModelFX820
Start TypeElectric
Horsepower34.5 HP
PRODUCTIVITY
Forward Speed12.5 MPH
Reverse Speed8 MPH
Fuel Capacity11 GAL
Max Acres Per Hour7.7
DRIVE SYSTEM
TypeHydro
MotorNA
PumpNA
TransaxleHydro-Gear ZT4400
TransmissionNA
DECK
Deck Size61 IN
Deck TypeFloating-side discharge
ConfigurationAero Core
Lift SystemQuick-Cut
Blade Quantity3
Blade Length21 IN
Deck Min. Cut Height1.75 IN
Deck Max. Cut Height5.75 IN
Steel Gauge7 Gauge
Spindle TypeDuctile Iron
DIMENSIONS & WEIGHT
Weight1180 LB
Length71.50 IN
Width w/ Deflector Down74.50 IN
Width w/ Deflector Up62.00 IN
CASTER WHEELS
Rim Diameter6.00 IN
Tire Diameter13.00 IN
Tire Width5.00 IN
REAR WHEELS
Rim Diameter12.00 IN
Tire Diameter24.00 IN
Tire Width12.00 IN
