Woods LS96R

New Products / Woods / Loaders / LS / LS96R

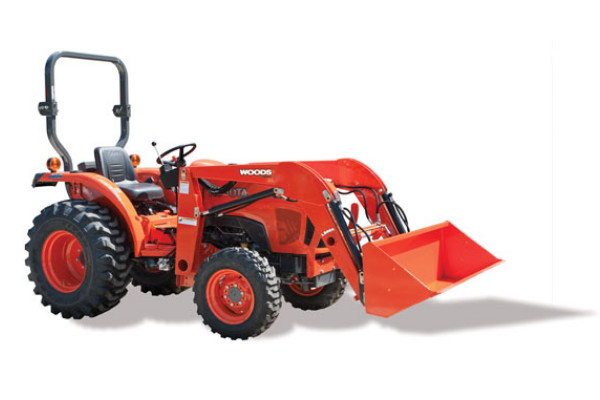

Woods LS96R for sale at H&M Equipment Co., Inc. New York

Double tap to zoom

Woods LS96R for sale at H&M Equipment Co., Inc. New York



Features

  • Tractor HP range: 20-35 hp
  • 96-inch maximum lift height
  • Rigid mount loader
  • Greasable end hardened pins with bushings
  • Optional Skid Steer Quick Attach system available
  • Available in orange or black

Specifications

Recommended tractor horsepower 20-35 hp
Maximum lift height 96"
Clearance with Attachment Dumped 79"
Lift Cylinder Size 1.77"
Bucket Cylinder Size 1.77"
Lift Capacity at Bucket Pins 1,175 lbs
Lift Capacity 19.7" Ahead of Bucket Pins 850 lbs
Breakout Capacity at Bucket Pins 2,175 lbs
Breakout Capacity 19.7" Ahead of Bucket Pins 1,650 lbs
Working width 3.5"
Maximum Dump Angle 41°
Maximum Roll-back Angle 24°
Reach at maximum height 17.3"
System Pressure for Capacity Ratings 2350 psi
Pivot Pin Diameter 1.00"
Number of Bucket Cylinders 1
Bucket widths 60"
Bucket Heaped Capacity (cu. ft.) 8.4 cu. ft.
Skid Steer Quick Attach Optional
