Woods LS96

New Products / Woods / Loaders / LS / LS96

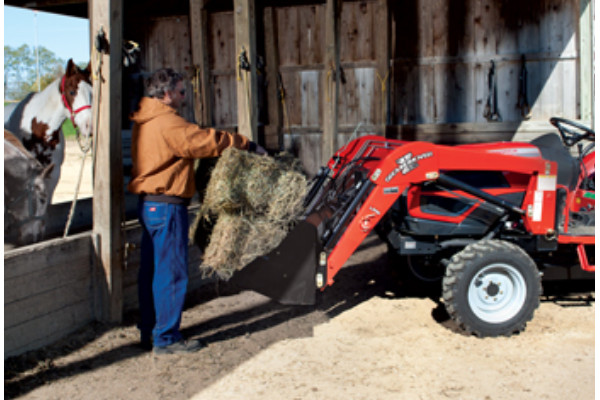

Woods LS96 for sale at H&M Equipment Co., Inc. New York

Double tap to zoom

Woods LS96 for sale at H&M Equipment Co., Inc. New York



Features

  • Tractor HP range: 20-35 hp
  • 96-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Optional Skid Steer Quick Attach system available
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 20 - 35 hp
Maximum lift height 96"
Clearance with Attachment Dumped 79"
Lift Cylinder Size 1.77"
Bucket Cylinder Size 1.77"
Lift Capacity at Bucket Pins 1,125 lbs
Lift Capacity 19.7" Ahead of Bucket Pins 800 lbs
Breakout Capacity at Bucket Pins 2,075 lbs
Breakout Capacity 19.7" Ahead of Bucket Pins 1,575 lbs
Working width 4"
Maximum Dump Angle 41°
Maximum Roll-back Angle 24°
Reach at maximum height 18"
System Pressure for Capacity Ratings 2,250 psi
Pivot Pin Diameter 1.00"
Number of Bucket Cylinders 1
Bucket widths 60"
Bucket Heaped Capacity (cu. ft.) 9.4 cu. ft.
Skid Steer Quick Attach Optional
