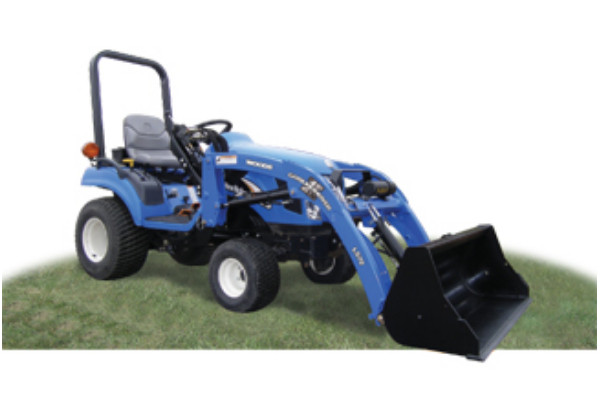

Woods LS72

New Products / Woods / Loaders / LS / LS72

Woods LS72 for sale at H&M Equipment Co., Inc. New York

Double tap to zoom

Woods LS72 for sale at H&M Equipment Co., Inc. New York



Features

  • Tractor HP range: 15-30 hp
  • 72-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 15-25 hp
Bucket widths 48", 54"
Bucket rated capacity c.c. ft. (66" / 72") 6.0 / 6.8
Working width 4"
Maximum lift height 72"
Clearance under bucket 53"
Reach at maximum height 30"
Bucket roll back angle 25°
Bucket dump angle 45°
Tested hydraulic PSI 1,780 psi
Lift capacity at bucket pin 650 lbs
Breakout at bucket pin 1,400 lbs
Lift capacity at 19.7" ahead of bucket pins 500 lbs
Breakout at 19.7" ahead of bucket pins 900 lbs
Pivot pins diameter .75", 1"
Lift cylinder diameter 1.57"
Bucket cylinder diameter 2.48"
