Echo CH9540H 9 Inch PTO Chipper

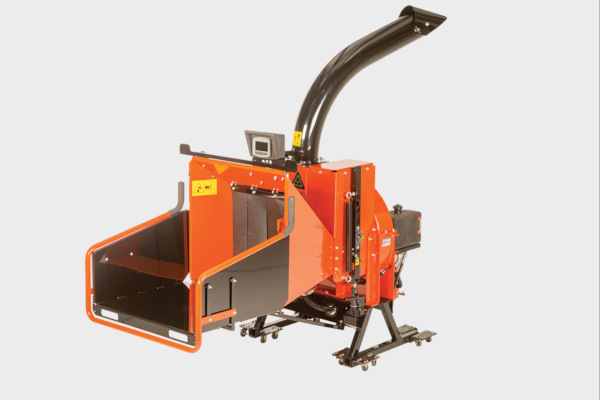

Echo CH9540H 9 Inch PTO Chipper for sale at H&M Equipment Co., Inc. New York

Double tap to zoom

Echo CH9540H 9 Inch PTO Chipper for sale at H&M Equipment Co., Inc. New York



Features

Power take offs on utility tractors have become a primary source for much of the work around farms, orchards, golf courses, etc. Any place where you need to turn a pile of branches into a pile of chips.

You choose - self feed or hydrostatic hydraulic feed for infinite feed settings - these chippers mount on your three point hitch and hook directly to the PTO for quick setup and power on demand.

Rotating 360 degrees, the 8 inch round discharge chute gives you accurate control over the flow of chips produced. The 30 x 1 inch thick, 275 pound dynamically-balanced disc, adjustable 4-sided anvil, four reversible chipper blades. The feed roller on the CH9540H is 15 inches in diameter, containing 10 knife blades for enhanced powerful feeding. A hydraulic jack is mounted on the hydraulic feed system for ease of maintenance. Plate steel construction means solid performance for hundreds of hours, and maintenance is enhanced by a hinged disc cover that provides wide open access to the chipper blades and disc.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 35 hp to 60 hp

Specifications

Chipper
Feed System: Hydraulic
Auto Feed: Yes
Chute Opening: 30'' x 31''
Chipping Blades: 4 Reversible Heat-treated
Rotor Size/Weight: 30"x 1.25"/275 lbs.
Hydraulic Controller: DDC System

Dimensions
Max Chipping Capacity: 9''
L x W x H: 70'' x 50'' x 93''
Weight: 1,460 lbs.
Chute Throat: 9'' x 9''

Engine
PTO Input Power Range: 35-60 hp
PTO Capable: Yes
Drive Type: Triple-Banded Belt
